A/C 12V 24V 48V Electric Compressor Set for Auto AC Air Conditioning Car Truck Bus Boat Tractor Shop Automobile Aircon
A/C 12V 24V 48V Electric Compressor Set for Auto AC Air Conditioning Car Truck Bus Boat Tractor Shop Automobile Aircon
SPECIFICATIONS
Brand Name: Gcfix
Compressor style: Semi-closed Horizontal Scroll Compressor
D compressor size: 22.1cm x 15cm x 12.5cm
Discharge pipe inner size: 15.5mm
E compressor size: 21.5cm x 12.5cm x 14cm
High-concerned chemical: None
Item Type: Air-conditioning Installation
Material: aluminum alloy
Model Name: Gcfix-ec
Origin: Mainland China
Q compressor size: 22.1cm x 12.5cm x 14cm
Refrigerant (Gas): R134a
S compressor size: 20cm x10cm
Suction pipe inner size: 18.3mm
Voltage: 12V/24V/48V
Year: 2024
Car Truck Bus Boat Tractor Shop Automobile Aircon
A/C 12V 24V 48V Electric Compressor Set for Auto AC Air Conditioning
Notice
Some sellers copy our compressor and specification and that's a different compressor. Please pay attention.
Generator (battery) request
12V compressor require generator ampere over 100a;
24V compressor require generator ampere over 80A.
About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 55A. So one new and full charged 55A battery can run the compressor for one hour.
Pay attention
⑴ Do not energize in vacuum.
⑵ Cannot be placed in water for a long time.
⑶ Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt.
⑷ PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.
⑸To prevent unwanted moisture entering the system and causing insulation down,the compressor should be installed in a closed system immediately once you’ve opened the suction/exhaust port.
1. Q,D,E Information
(1) Compressor data:
Brand: Gcfix
Fit for：All models
Compressor style: Horizontal DC speed regulating semi-closed integrated electric scroll compressor
Refrigerant (Gas): R134a
Material: Aluminum alloy
Voltage: DC 12V / 24V / 48V
Working voltage range: 9VDC—16VDC / 18VDC—32VDC / 42VDC—63VDC
Compressor displacement: 20cc/r
Cooling capacity: 1900W / 2300W / 2400W（6483 Btu / 7848 Btu / 8189 Btu）
Speed range: 1000rpm～2500rpm / 1000rpm～3150rpm / 1050rpm～3100rpm
Input power:650W / 850W / 850W
Oil:12V&48V-POE68 /120ml
24V-EMKARATE RL68H（POE）/120ml
Working temperature: -10℃~+65℃
Storage temperature: -45℃~+85℃
Suction pipe inner size: Ø18.3mm
Discharge pipe inner size: Ø15.5mm
COP W/W: 2.92 / 2.7 / 2.8
Suction pressure: 0.375 ±0.005MPa
Discharge pressure: 1.50±0.02MPa
The weight ratio of oil to refrigerant in the system is generally required to be 0.1 ~ 0.15

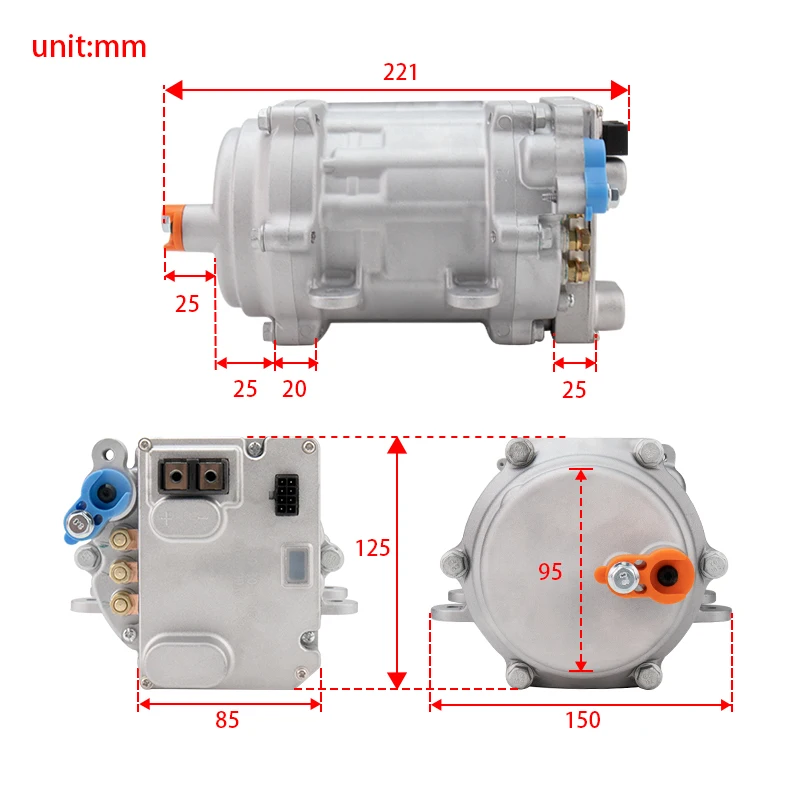

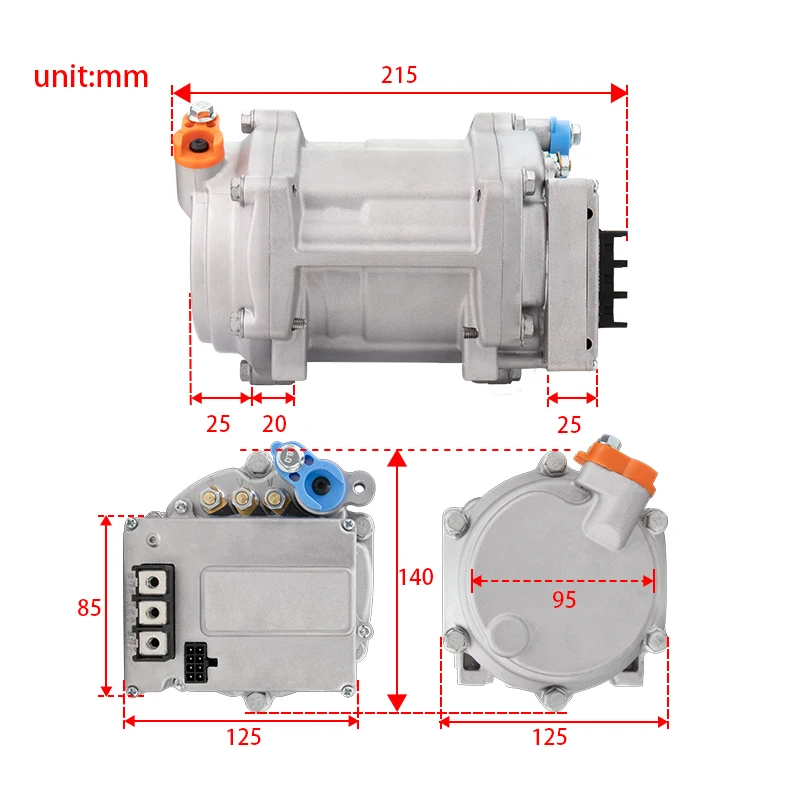

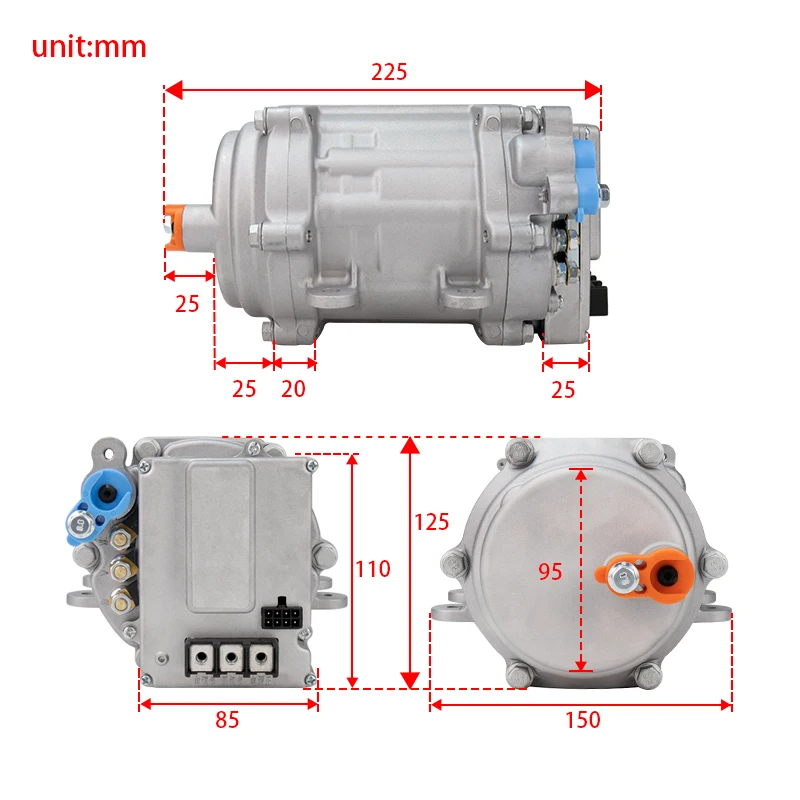

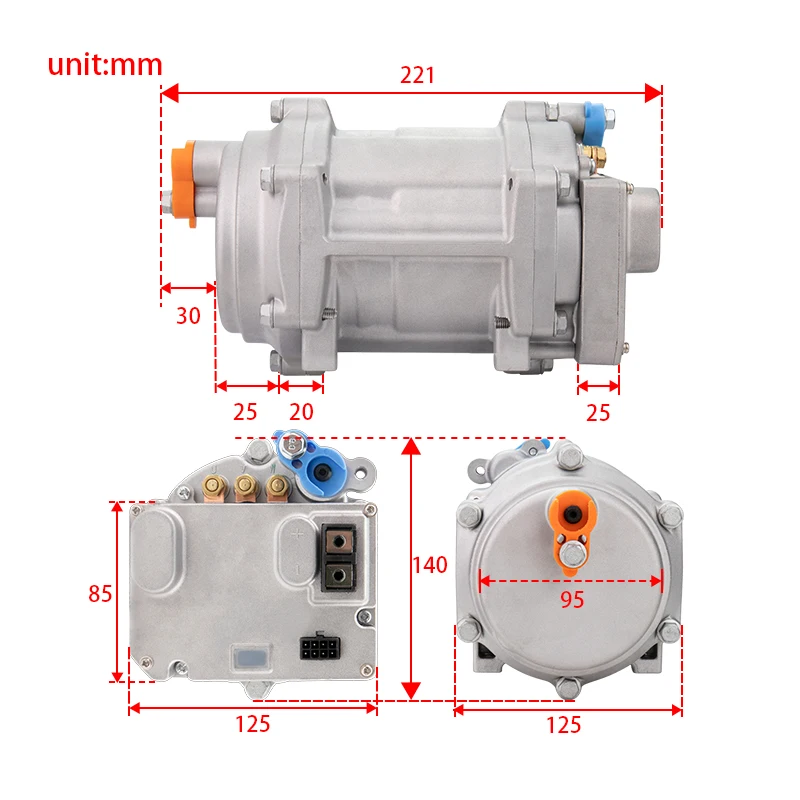

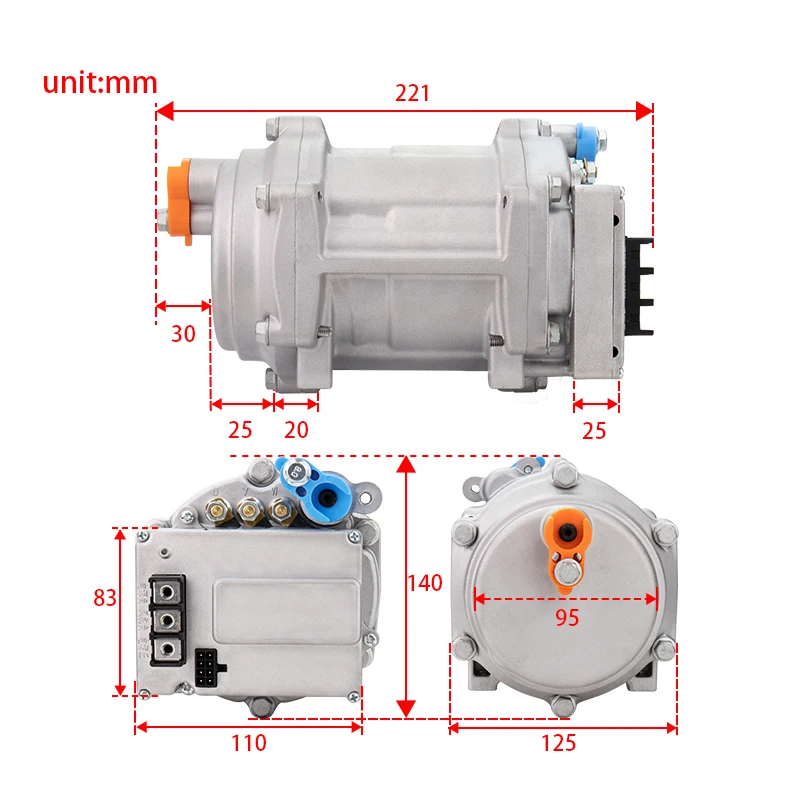

(2) Product size diagram

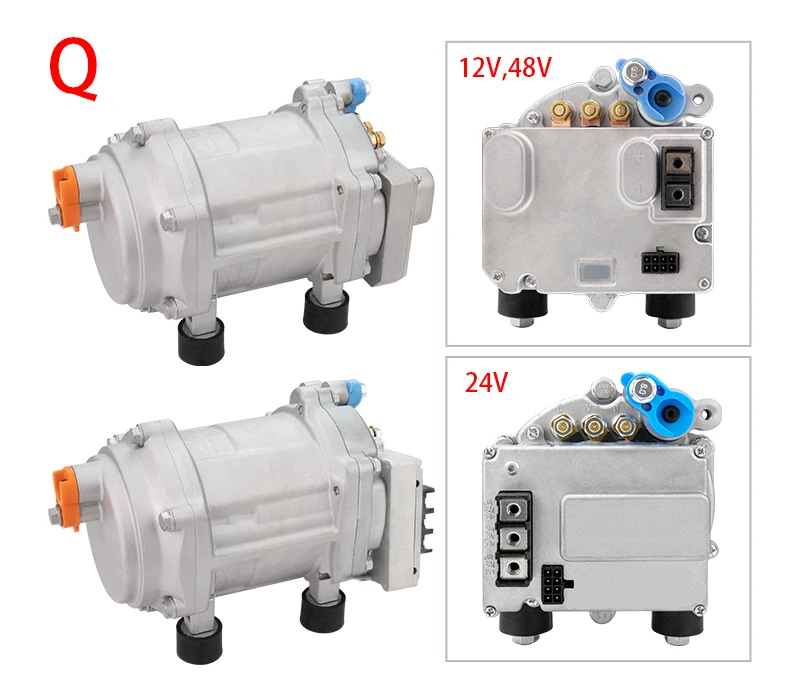

Q-12V/48V Q-24V
Q Size:22.1cm x 12.5cm x 14cm

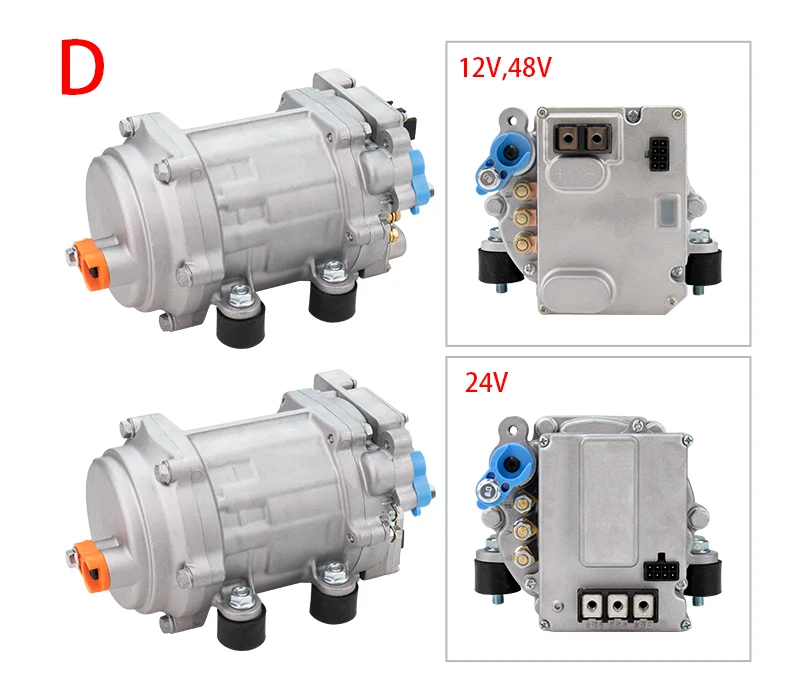

D-12V/48V D-24V
D Size:22.1cm x 15cm x 12.5cm

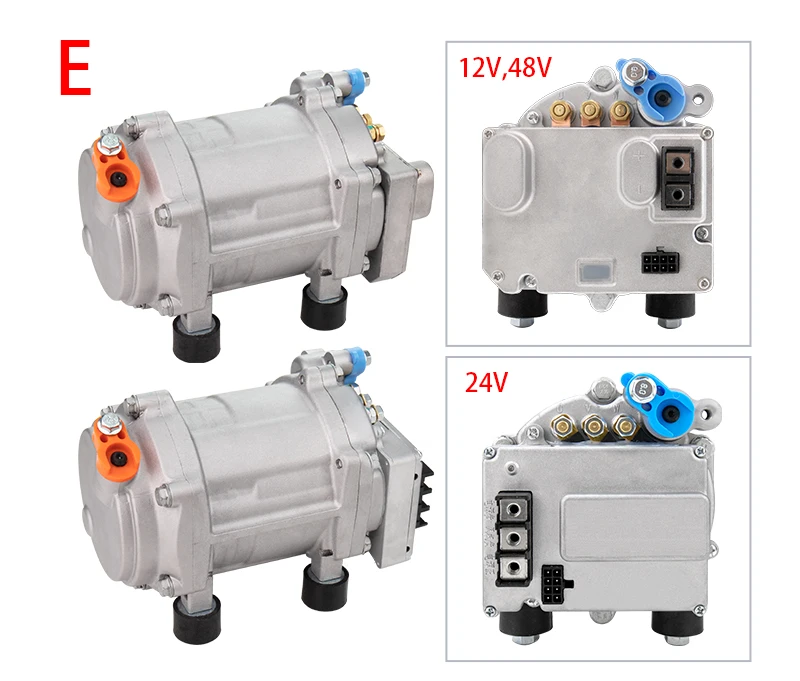

E-12V/48V E-24V
E Size:21.5cm x 12.5cm x 14cm
(3) Noise level
12V 24V 48V
Speed:2500rpm Speed:3150rpm Speed:3100rpm
Noise: ＜70dB(A) Noise: ＜77dB(A) Noise: ＜75dB(A)
(4) Detail drawing of product
(5) Led blinking（12V&48V）
Work：Light on
Blinking 1 second, pause 1 second: Standby mode.
Blinking 0.2 second, pause 0.2 second,stop for 1 second after 2 cycles: Lack of phase,Overcurrent.
Blinking 0.2 second, pause 0.2 second,stop for 1 second after 4 cycle: Undervoltage.
Blinking 0.2 second, pause 0.2 second,stop for 1 second after 5 cycles: MOS tube damaged/short-circuited.
Blinking 0.2 second, pause 0.2 second,stop for 1 second after 6 cycles: Overvoltage.
Blinking 0.2 second, pause 0.2 second,stop for 1 second after 13 cycles: Overheat.
Led blinking（24V）
Blinking 1 times: Standby mode.
Blinking 2 times: Excessive current.
Blinking 3 times: Lack of phase,Locked rotor protection.
Blinking 4 times: Undervoltage protection.
Blinking 5 times: Compressor phase line short circuit protection.
Blinking 6 times: Overvoltage protection.
Blinking 7 times: Startup ailure.
Blinking 8 times: Electric fan fault.
(6) Package product list
1. 1 x Compressor
2. 1 x Connecting Wire Kit
(Battery wire-3 meters,Evaporator wire-3 meters,Electronic fan wire-3 meters)

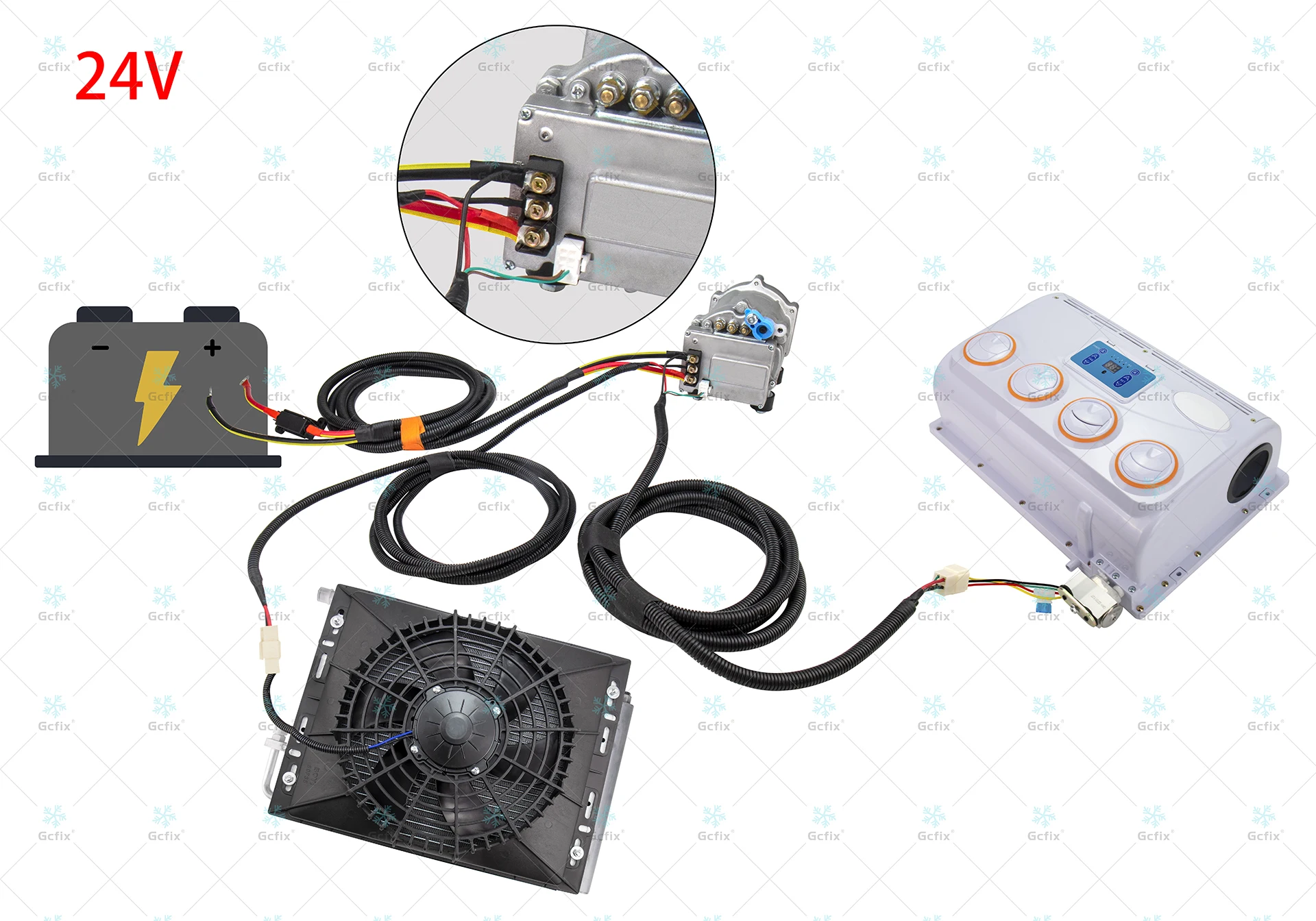

(7) Wiring diagram (Read carefully)
(Not all products are in your order. Only for wiring diagram reference !!!!! )
2. S Information
(1) Compressor data:
Brand: Gcfix
Compressor style: Semi-closed Horizontal Scroll Compressor
Material: Aluminum alloy
Voltage: DC 12V / 24V
Working voltage range: 10.5VDC～15VDC / 19.5VDC～32VDC
Current: 45A+-2 / 35A+-2
Displacement: 21cm³/r
Cooling capacity: 1.688KW / 2.465KW (5731BTU / 8410BTU)
Speed range: 1000 - 2300rpm / 1000 - 3000rpm
Rated power: 550W / 850w
Rated speed: 1800rpm / 3000rpm
Oil: POE / 130ml - 150ml (Oil has already in compressor )
Gas/Refrigerant: R134a
Suction pressure: 0.2～0.45Mpa
Discharge pressure: ≤2.0Mpa / ≤2.2Mpa
Condensing temperature range: 26.7～68℃
Evaporating temperature range: -10～12.5℃
Refrigerant leakage rate: <14g per year
Suction pipe inner size: Ø18.3mm
Discharge pipe inner size: Ø15.5mm
COP W/W: 3.07 / 2.9
pressure ratio: ≤10
Ambient temperature: -40℃ - 80℃
Discharge temperature: ≤110℃
Lubricating oil require: 8%-10% of whole system refrigerant (Gas)

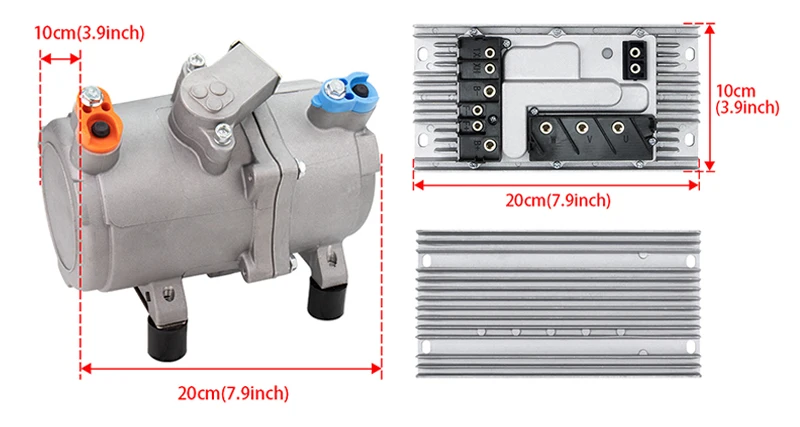

(2) Product size diagram
S Dimension:20cm x 10cm
(3) Noise level
12V:
Speed: 1500rpm / 2300rpm
Noise: ≤70dB(A) / ≤74dB(A)
24V:
Speed: 2000-3000rpm / 3000-4000rpm
Noise: ≤76dB(A) / ≤78dB(A)

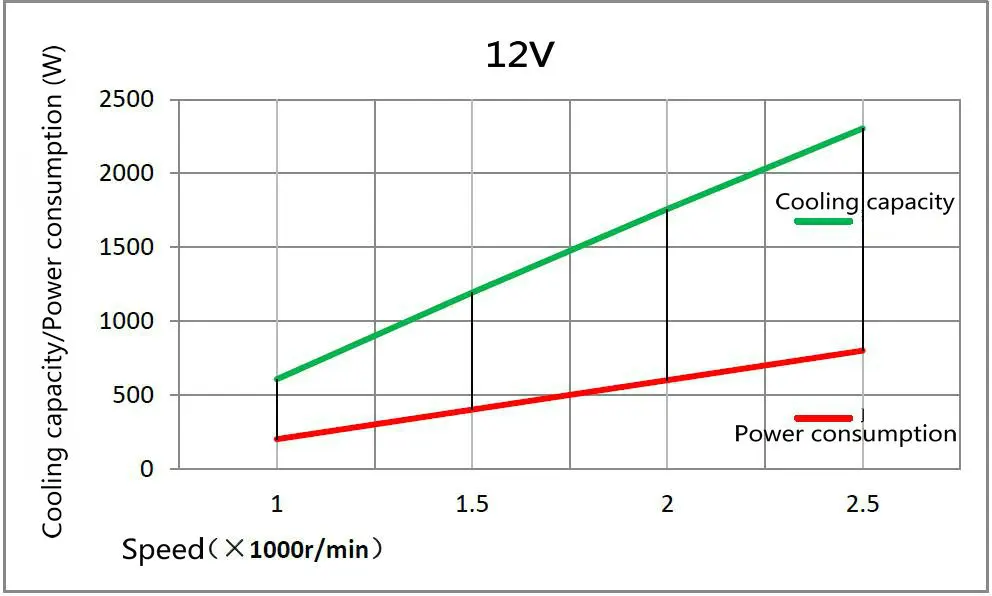

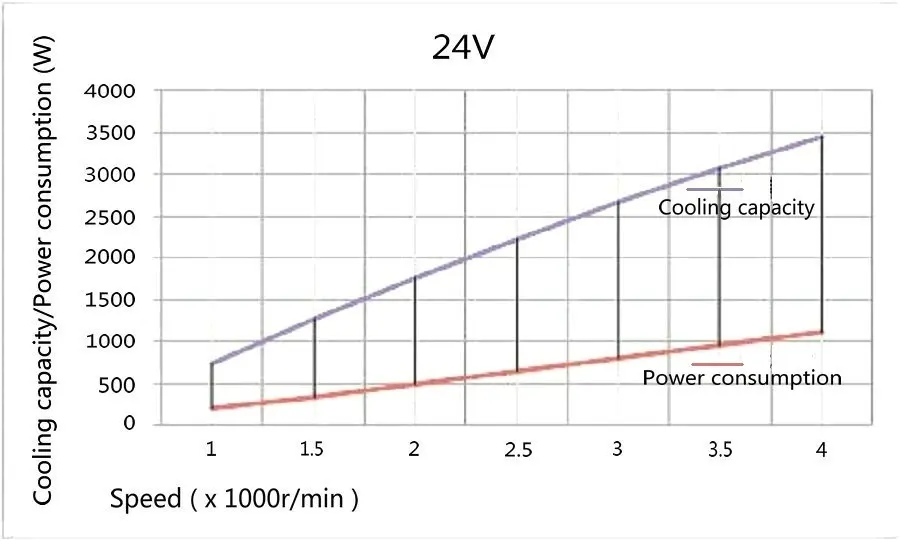

(4) Cooling performance
Remark: Speed tolerance ±1%. Actual test cooling capacity data not less than 90% of data in the table. Actual test power rate not exceed 110% of data in the table.
(5) Dimension
Compressor body not to be tilted (the angle between the main axis of the compressor and the horizon should not be greater than 5 °)
(6) Brushless controller unit
Brushless direct current controller
1. Over / Under voltage protection:
DC 12V -- ( 21V / 10.5V )
DC 24V -- ( 42V / 20.5V )
2. Max power: 600w / 1200W
(7) Led blinking
Blinking 1 times, pause 1 second: Standby mode.
Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.
Fast blinking 3 times, pause 1 second: Locked rotor protection.
Fast blinking 4 times, pause 1 second: Undervoltage protection.
Fast blinking 6 times, pause 1 second: Electric fan fault.
Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.
Fast blinking 8 times, pause 1 second: Compressor over heated protection.
Fast blinking 9 times, pause 1 second: Pressure switch protection.
(8) Package product list:
1. 1 x Compressor
2. 1 x Brushless controller board.
3. Two pieces fittings with service ports.
( Electric fan and drier are not included! )

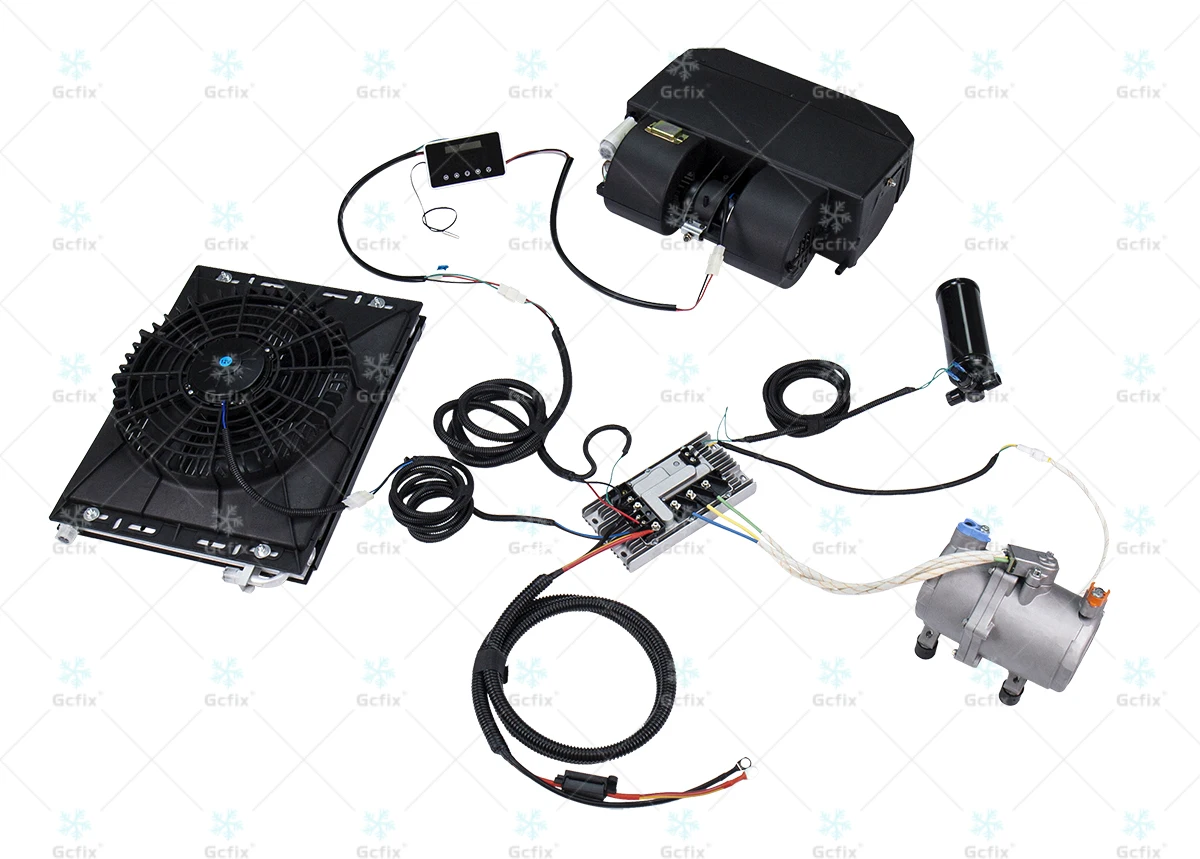

(9) Wiring diagram (Read carefully)
(Not all products are in your order. Only for wiring diagram reference !!!!! )
Dropship
Shipping
We strive our best to provide you the most reliable, affordable way of shipping service.But sometimes international delivery is highly depended on the courier company and local customs/duties.If you do not receive your item on time, please contact us immediately for further assistance.Thank you for your understanding.
UPS shipping usually takes 3-5 working days
DHL shipping usually takes 4-7 working days
EMS shipping usually takes 5-15 working days
China post shipping usually takes 12-60 working days
