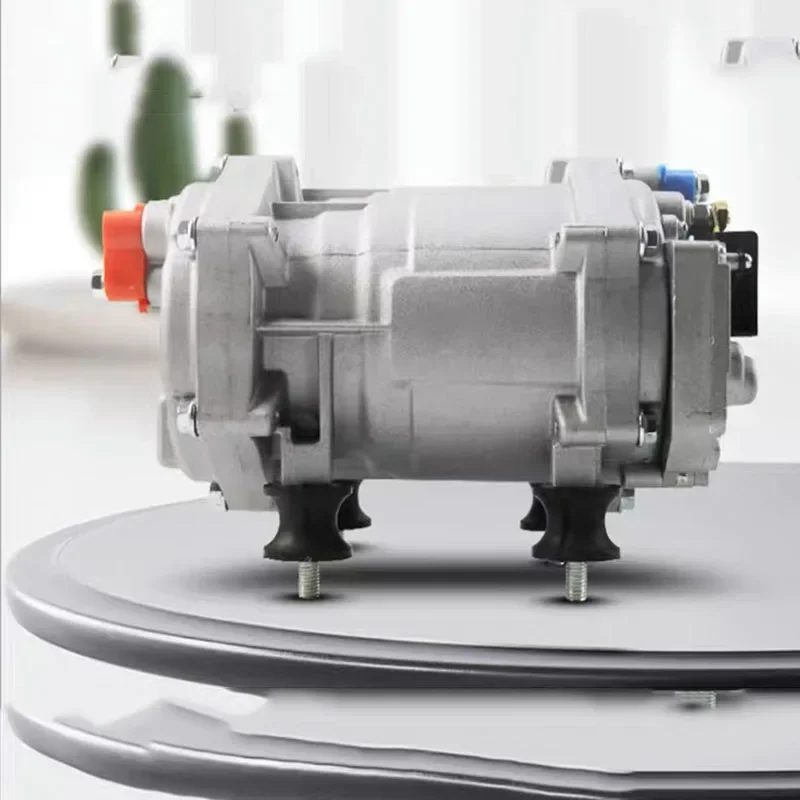

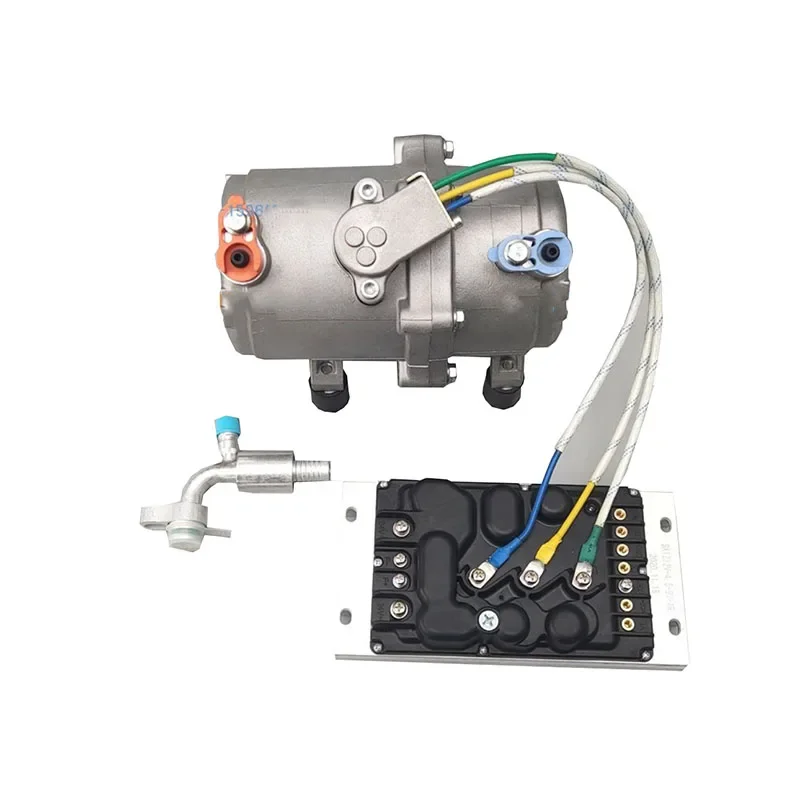

Air Conditioner 12V/24V Electric Compressor Unit Energy Modified Electric Suitable for Car Truck Bus Tractor Car Air Conditioner

Compressor type: DC speed adjustable split rotary compressor

Compressor displacement: 20cc/r

Refrigerant type: R134a (not included)

Lubricating oil: RL68H(POE)/120ml (not included)

Cooling capacity: (12V) 2200W+ (24V) 2600W+

Input power: (12V) 650W (24V) 850W

Power supply positive and negative input wiring harness requirements: (12V) more than 14 square meters (24V) more than 10 square meters

Installation method: horizontal upright



[Electric compressor installation requirements]:





For driving: the 12-volt generator needs to meet more than 100A, and the 24-volt generator needs to meet more than 65A. It is recommended to use more than 150A for parking batteries. Only 1 evaporator model is retrofitted with 2 or more large space model evaporators disabled!

Battery wire requirements: 14 square copper wires for 12V cars, 10 square copper wires for 24V cars. (Note: 1.2T or 1.0T expansion valve should be used for internal evaporator, and 1.5T expansion valve is prohibited)
